VALVES
Ball Valve
Features:
  1. On/service ball valve with 2-way pattern and diverter service ball valve with 3-way pattern.
  2. MAWP 6000psi(410Bar) and MAWT 400oF(204oC)
  3. Material is available in 316 Stainless Steel, Brass.
  4. The floating ball design to provide seat wear compensation and ensure leak proof shut off
      an pressure.
  5. Bi-directional flow.
  6. Micro-finished ball provides a positive seal.
  7. Wide range of end connection, available with LOCK-FIT tube end,NPT or BSP/ISO taper
      thread in male and female end.
  8. Handle indicates flow direction and code handles.
  9. Panel mountable.
10. 100% factory tested. Each valves is 100% tested with nitrogen at 1000psi(69 bar) for
      leakage at the seat and stem packing or hydrostatic shell test in performed at 1.5 times
      the working pressure.

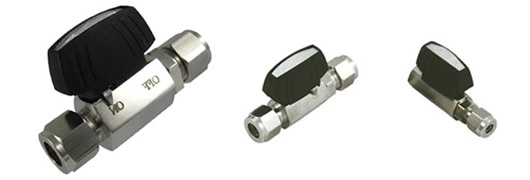

BVS

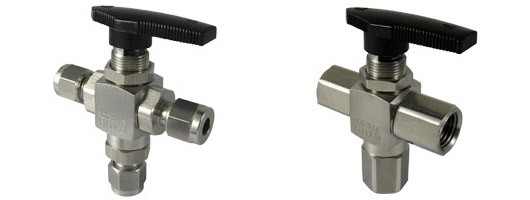

BV3W
Features:
  1. On/service ball valve with 2-way pattern and diverter service ball valve with 3-way pattern.
  2. MAWP 6000psi(410Bar) and MAWT 400oF(204oC)
  3. Material is available in 316 Stainless Steel, Brass.
  4. The floating ball design to provide seat wear compensation and ensure leak proof shut off
      an pressure.
  5. Bi-directional flow.
  6. Micro-finished ball provides a positive seal.
  7. Wide range of end connection, available with LOCK-FIT tube end,NPT or BSP/ISO taper
      thread in male and female end.
  8. Handle indicates flow direction and code handles.
  9. Panel mountable.
10. 100% factory tested. Each valves is 100% tested with nitrogen at 1000psi(69 bar) for
      leakage at the seat and stem packing or hydrostatic shell test in performed at 1.5 times
      the working pressure.

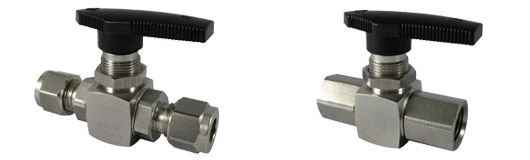

BVL
Features:
 1. On/service ball valve with 2-way pattern and diverter
     service ball valve with 3-way pattern.
 2. MAWP 6000psi(410Bar) and MAWT 400oF(204oC)
 3. Material is available in 316 Stainless Steel, Brass.
 4. The floating ball design to provide seat wear compensation
     and ensure leak proof shut off an pressure.
 5. Bi-directional flow.
 6. Micro-finished ball provides a positive seal.
 7. Wide range of end connection, available with LOCK-FIT
     tube end,NPT or BSP/ISO taper thread in male and female
     end.
 8. Handle indicates flow direction and code handles.
 9. Panel mountable.
10. 100% factory tested. Each valves is 100% tested with
     nitrogen at 1000psi(69 bar) for leakage at the seat
     and stem packing or hydrostatic shell test in performed at
     1.5 times the working pressure.

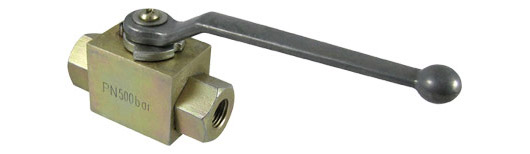

BVJ
Features:
  1. On/service ball valve with 2-way pattern and diverter service ball valve with 3-way pattern.
  2. MAWP 6000psi(410Bar) and MAWT 400oF(204oC)
  3. Material is available in 316 Stainless Steel, Brass.
  4. The floating ball design to provide seat wear compensation and ensure leak proof shut off
      an pressure.
  5. Bi-directional flow.
  6. Micro-finished ball provides a positive seal.
  7. Wide range of end connection, available with LOCK-FIT tube end,NPT or BSP/ISO taper
      thread in male and female end.
  8. Handle indicates flow direction and code handles.
  9. Panel mountable.
10. 100% factory tested. Each valves is 100% tested with nitrogen at 1000psi(69 bar) for
      leakage at the seat and stem packing or hydrostatic shell test in performed at 1.5 times
      the working pressure.
BVJ
Features:
  1. On/service ball valve with 2-way pattern and diverter service ball valve with 3-way pattern.
  2. MAWP 6000psi(410Bar) and MAWT 400oF(204oC)
  3. Material is available in 316 Stainless Steel, Brass.
  4. The floating ball design to provide seat wear compensation and ensure leak proof shut off
      an pressure.
  5. Bi-directional flow.
  6. Micro-finished ball provides a positive seal.
  7. Wide range of end connection, available with LOCK-FIT tube end,NPT or BSP/ISO taper
      thread in male and female end.
  8. Handle indicates flow direction and code handles.
  9. Panel mountable.
10. 100% factory tested. Each valves is 100% tested with nitrogen at 1000psi(69 bar) for
      leakage at the seat and stem packing or hydrostatic shell test in performed at 1.5 times
      the working pressure.

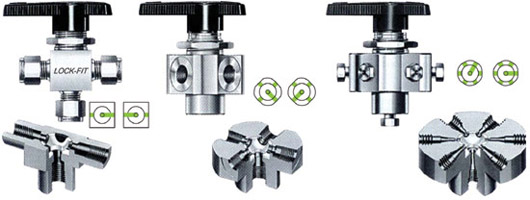

INBV
Features:
- Unique, top-loaded capsule packing allows reliable switching.
- Flow can be switched from a single inlet to multiple outlets or from multiple inlets to
  a common outlet.
- 3-way valve has a center-off position.
- 5- and 7-way series valves have a spring-loaded detent for exact port positioning
