VALVES
Needle Valve
Model & External Dimension:
- Carbon/Stainless Steel Needle Valve
- Thread M×F F×F
- Needle Valve
- Pressure: 6000PSI~10000PSI

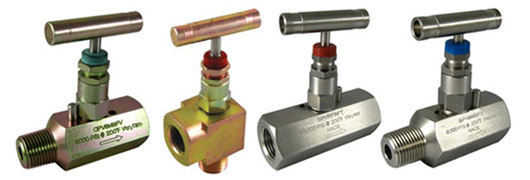

CPNV (MxF)
CPNV (MxF)
SPNV (FxF)
SPNV (MxF)

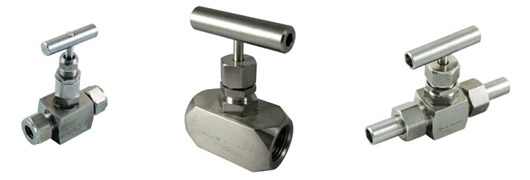

PNV
SNV
Features:
- Working pressure up to 10,000 psig(689bar).
- Temperature rating from -65oF to 450oF (-54oC to 232oC) with standard PTFE packing and
  up to 1200oF (648C) with optional Grafoil packing.
- Body material available in 316SS, Carbon Steel.
- 100% factory tested

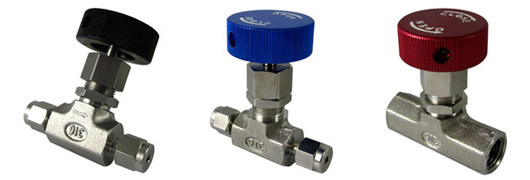

MNV
Feature & Benefits:
1. Bonnet lock pins prevent accidental loosening.
2. Free-swiveling ball end stem(metal seat,std.)assure bubble tight valve closure without seat
    galling. The special hardened ball seat is ideal for both gas and liquid service.
3. All stem packing is located below the stem threads prevent galling, corrosion and
    contamination by the process media.
4. The packing is adjustable with less possibility of bonnet/body leaks.
5. Full back-seated bonnets prevent accidental stem removal and blowout. Unique design
    minimizes emissions while offering easy access to the packing.
6. Max.pressure rating: SS316,6000Psi
                                  BRASS,3000Psi
7. Using temperature: -40oC---200oC (Special require that could raise to 650oC)
8. 100% factory testing
9. Color choose of handle: Black, Blue, Red.

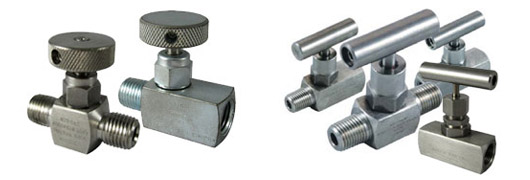

MV
Specifications:
- Rated To 6,000 Psi
- Carbon Steel Construction
- Stainless Steel Construction
- Viton Packing And Seals
- Working Temperature -20 Deg F To 100 Deg F
- Threads Conform To Asme B1.20.1
MVD
MVH
MP
Specifications:
- Rated To 10,000 Psi (T Type)
- Carbon Steel Construction
- Stainless Steel Construction
- Teflon Packing
- Working Temperature -20 Deg F To 200 Deg F
- Threads Conform To Asme B1.20.1
MVL
Features:
- Forged-body 316St.St. or brass construction
- Straight and angle patterns
- Panel mounting
- MAWP 2000 psig-(135bar)
- MAWT 400oF (204oC)
- Flow coefficients(Cv) from 0.004 to 0.15
- Round & slotted handles with screwdriver slots
- LOK-FIT ends,male & female NPT, lok-fit face seal
  bead end connections
- 1o ,3oand 5o stem taper for required flow control
- Stem with stopper shoulder-long lifetime
MVA
Features:
- Stem upper shoulder (for safe, full opening)
  prevents locking between stem and bonnet.
- Safety bonnet sleeve
- Tapered stem tip controls accurate gas and liquid
  flow rate.
- Lock set screw helps determine required flow
  (slotted handles).
- Guide ring keeps the stem concentric to the orifice.
