VALVES
Valve Manifold
Valve Manifold
Features:
1. Bonnet lock pins prevent accidental loosening.
2. Free-swiveling ball end stem(metal seat, std.) assure bubble tight valve closure without
seat galling. The special hardened ball seat is ideal for both gas and liquid service.
3. All stem packing is located below the stem threads prevent galling, corrosion and
contamination by the process medias.
4. The packing is adjustable with less possibility of bonnet/body leaks.
5. Full back-seated bonnets prevent accidental stem removal and blowout.
Unique design minimizes emissions while offering easy access to the packing.
6. Max Pressure rating(metal seated).6000PSIG@200oF(414barg@93oC)
7. Pressure rating at max. temp.:
PTFE-4130psig at 450oF284bar at 232oC) and Grafoil-1500psigat 1000oF103bar at 537oC).
8. The orifice size: 0.156 inch (4.0mm).
Offer the following two valve manifolds:
Block Type(R Type)
Single Flange Type(T Type)
1. Bonnet lock pins prevent accidental loosening.
2. Free-swiveling ball end stem(metal seat, std.) assure bubble tight valve closure without
seat galling. The special hardened ball seat is ideal for both gas and liquid service.
3. All stem packing is located below the stem threads prevent galling, corrosion and
contamination by the process medias.
4. The packing is adjustable with less possibility of bonnet/body leaks.
5. Full back-seated bonnets prevent accidental stem removal and blowout.
Unique design minimizes emissions while offering easy access to the packing.
6. Max Pressure rating(metal seated).6000PSIG@200oF(414barg@93oC)
7. Pressure rating at max. temp.:
PTFE-4130psig at 450oF284bar at 232oC) and Grafoil-1500psigat 1000oF103bar at 537oC).
8. The orifice size: 0.156 inch (4.0mm).
Offer the following two valve manifolds:
Block Type(R Type)
Single Flange Type(T Type)

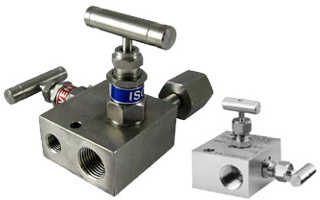

PNV

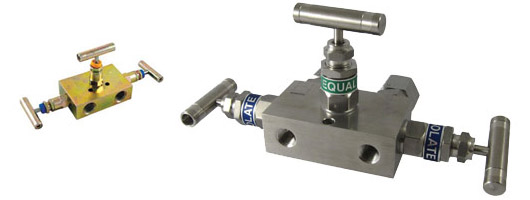

3VM
Features:
1. Bonnet lock pins prevent accidental loosening.
2. Free-swiveling ball end stem(metal seat, std.) assure bubble tight valve closure without
seat galling. The special hardened ball seat is ideal for both gas and liquid service.
3. All stem packing is located below the stem threads prevent galling, corrosion and
contamination by the process medias.
4. The packing is adjustable with less possibility of bonnet/body leaks.
5. Full back-seated bonnets prevent accidental stem removal and blowout.
Unique design minimizes emissions while offering easy access to the packing.
6. Max Pressure rating(metal seated).6000PSIG@200oF(414barg@93oC)
7. Pressure rating at max. temp.:
PTFE-4130psig at 450oF284bar at 232oC) and Grafoil-1500psigat 1000oF103bar at 537oC).
8. The orifice size: 0.156 inch (4.0mm).
1. Bonnet lock pins prevent accidental loosening.
2. Free-swiveling ball end stem(metal seat, std.) assure bubble tight valve closure without
seat galling. The special hardened ball seat is ideal for both gas and liquid service.
3. All stem packing is located below the stem threads prevent galling, corrosion and
contamination by the process medias.
4. The packing is adjustable with less possibility of bonnet/body leaks.
5. Full back-seated bonnets prevent accidental stem removal and blowout.
Unique design minimizes emissions while offering easy access to the packing.
6. Max Pressure rating(metal seated).6000PSIG@200oF(414barg@93oC)
7. Pressure rating at max. temp.:
PTFE-4130psig at 450oF284bar at 232oC) and Grafoil-1500psigat 1000oF103bar at 537oC).
8. The orifice size: 0.156 inch (4.0mm).

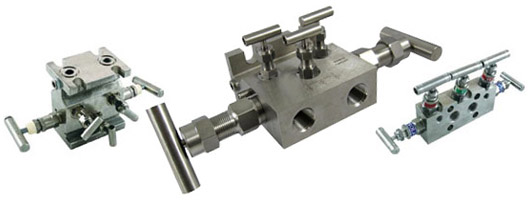

5VM
Features:
1. Bonnet lock pins prevent accidental loosening.
2. Free-swiveling ball end stem(metal seat, std.) assure bubble tight valve closure without
seat galling. The special hardened ball seat is ideal for both gas and liquid service.
3. All stem packing is located below the stem threads prevent galling, corrosion and
contamination by the process medias.
4. The packing is adjustable with less possibility of bonnet/body leaks.
5. Full back-seated bonnets prevent accidental stem removal and blowout.
Unique design minimizes emissions while offering easy access to the packing.
6. Max Pressure rating(metal seated).6000PSIG@200oF(414barg@93oC)
7. Pressure rating at max. temp.:
PTFE-4130psig at 450oF284bar at 232oC) and Grafoil-1500psigat 1000oF103bar at 537oC).
8. The orifice size: 0.156 inch (4.0mm).
Offer the following two valve manifolds:
Block Type(R Type, Pipe to Pipe)
Single Flange Type(T Type, Pipe to Flange)
Dual Flange Type(H Type, Flange to Flange)
1. Bonnet lock pins prevent accidental loosening.
2. Free-swiveling ball end stem(metal seat, std.) assure bubble tight valve closure without
seat galling. The special hardened ball seat is ideal for both gas and liquid service.
3. All stem packing is located below the stem threads prevent galling, corrosion and
contamination by the process medias.
4. The packing is adjustable with less possibility of bonnet/body leaks.
5. Full back-seated bonnets prevent accidental stem removal and blowout.
Unique design minimizes emissions while offering easy access to the packing.
6. Max Pressure rating(metal seated).6000PSIG@200oF(414barg@93oC)
7. Pressure rating at max. temp.:
PTFE-4130psig at 450oF284bar at 232oC) and Grafoil-1500psigat 1000oF103bar at 537oC).
8. The orifice size: 0.156 inch (4.0mm).
Offer the following two valve manifolds:
Block Type(R Type, Pipe to Pipe)
Single Flange Type(T Type, Pipe to Flange)
Dual Flange Type(H Type, Flange to Flange)
