FF500 Series
- Parallel mount differential pressure gauge
- Static pressure as per maximum pressure range
- Accuracy class 1.6
- Design dial size 100mm
- Pressure range 0..1 bar to 0..60 bar
- Bottom, panel and surface mounting
- Conn. size G1/2” or G1/2”NPT
- Index protection IP45
- Ambient/working temp. -20o..+60oC/Max. +60oC
- Design material :
- Casing: Black enamel steel case
- Wetted parts: Copper alloy
- Window: Plain instrument glass
- Parallel mount differential pressure gauge
- Static pressure as per maximum pressure range
- Accuracy class 1.6
- Design dial size 100mm
- Pressure range 0..1 bar to 0..60 bar
- Bottom, panel and surface mounting
- Conn. size G1/2” or G1/2”NPT
- Index protection IP45
- Ambient/working temp. -20o..+60oC/Max. +60oC
- Design material :
- Casing: Black enamel steel case
- Wetted parts: Copper alloy
- Window: Plain instrument glass
PRESSURE MEASUREMENT
:: Mechanical Pressure Measurement:
> Bourdon Tube Pressure Gauge
> Capsul Gauge
:: Differential Mechanical Pressure Measurement
:: Mechanical Precission Pressure Measurement
:: Digital Pressure Measurement
:: Electrical Pressure Measurement:
> Pressure Transmitter
> Pressure Gauge with Contact
:: Mechanical Pressure Measurement:
> Bourdon Tube Pressure Gauge
> Capsul Gauge
:: Differential Mechanical Pressure Measurement
:: Mechanical Precission Pressure Measurement
:: Digital Pressure Measurement
:: Electrical Pressure Measurement:
> Pressure Transmitter
> Pressure Gauge with Contact
PRESSURE MEASUREMENT
Differential Mechanical Pressure Measurement
Differential Mechanical Pressure Measurement
SF500 Series
- All stainless steel differential pressure gauge
- Static pressure as per maximum pressure range
- Accuracy class 1.6
- Design dial size 100mm
- Pressure range 0..1 bar to 0..100 bar
- Bottom, panel and surface mounting
- Conn. size G1/2” or G1/2”NPT
- Index protection IP45
- Ambient/working temp. -20o..+60oC/Max. +100oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Stainless steel
- Window: Plain instrument glass
- All stainless steel differential pressure gauge
- Static pressure as per maximum pressure range
- Accuracy class 1.6
- Design dial size 100mm
- Pressure range 0..1 bar to 0..100 bar
- Bottom, panel and surface mounting
- Conn. size G1/2” or G1/2”NPT
- Index protection IP45
- Ambient/working temp. -20o..+60oC/Max. +100oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Stainless steel
- Window: Plain instrument glass
FV Series
- Stainless steel welded body differential pressure gauge
- Static pressure up to 25 bar
- Accuracy class 1.6
- Dial size 100 and 150mm
- Pressure range 0..16 mbar to 0..25 bar
- Direct bottom mount welded to diaphragm
- Conn. size G1/2” or G1/2”NPT
- Index protection IP65
- Ambient/working temp. -40o..+60oC/Max. +100oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Stainless steel
- Window: Plain instrument glass
- Stainless steel welded body differential pressure gauge
- Static pressure up to 25 bar
- Accuracy class 1.6
- Dial size 100 and 150mm
- Pressure range 0..16 mbar to 0..25 bar
- Direct bottom mount welded to diaphragm
- Conn. size G1/2” or G1/2”NPT
- Index protection IP65
- Ambient/working temp. -40o..+60oC/Max. +100oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Stainless steel
- Window: Plain instrument glass
FY Series
- Capsule differential pressure gauge
- Applicable for low pressure gaseous media
- Accuracy class 2.5
- Dial size 63mm
- Pressure range 0..25 mbar to 250 mbar
- Back mount with panel mount
- Index protection IP66
- Ambient/working temp. -40o..+60oC/Max. +100oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Copper alloy
- Window: Plain instrument glass
- Capsule differential pressure gauge
- Applicable for low pressure gaseous media
- Accuracy class 2.5
- Dial size 63mm
- Pressure range 0..25 mbar to 250 mbar
- Back mount with panel mount
- Index protection IP66
- Ambient/working temp. -40o..+60oC/Max. +100oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Copper alloy
- Window: Plain instrument glass
FX Series
- High static pressure differential pressure gauge
- Applicable for corrosive media
- Accuracy class 2.5, *Class 1.6
- Dial size 100 and 150mm
- Pressure range 0..25 mbar to 0..25 mbar
- Bottom, wall and pipe clamp mounting
- Index protection IP65
- Ambient temp. -20o+60oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Stainless steel
- Window: Safety Laminated glass
- High static pressure differential pressure gauge
- Applicable for corrosive media
- Accuracy class 2.5, *Class 1.6
- Dial size 100 and 150mm
- Pressure range 0..25 mbar to 0..25 mbar
- Bottom, wall and pipe clamp mounting
- Index protection IP65
- Ambient temp. -20o+60oC
- Design material :
- Casing: Stainless steel
- Wetted parts: Stainless steel
- Window: Safety Laminated glass

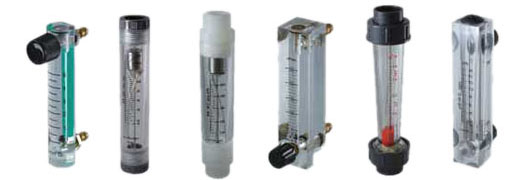

Flowmeter Products
